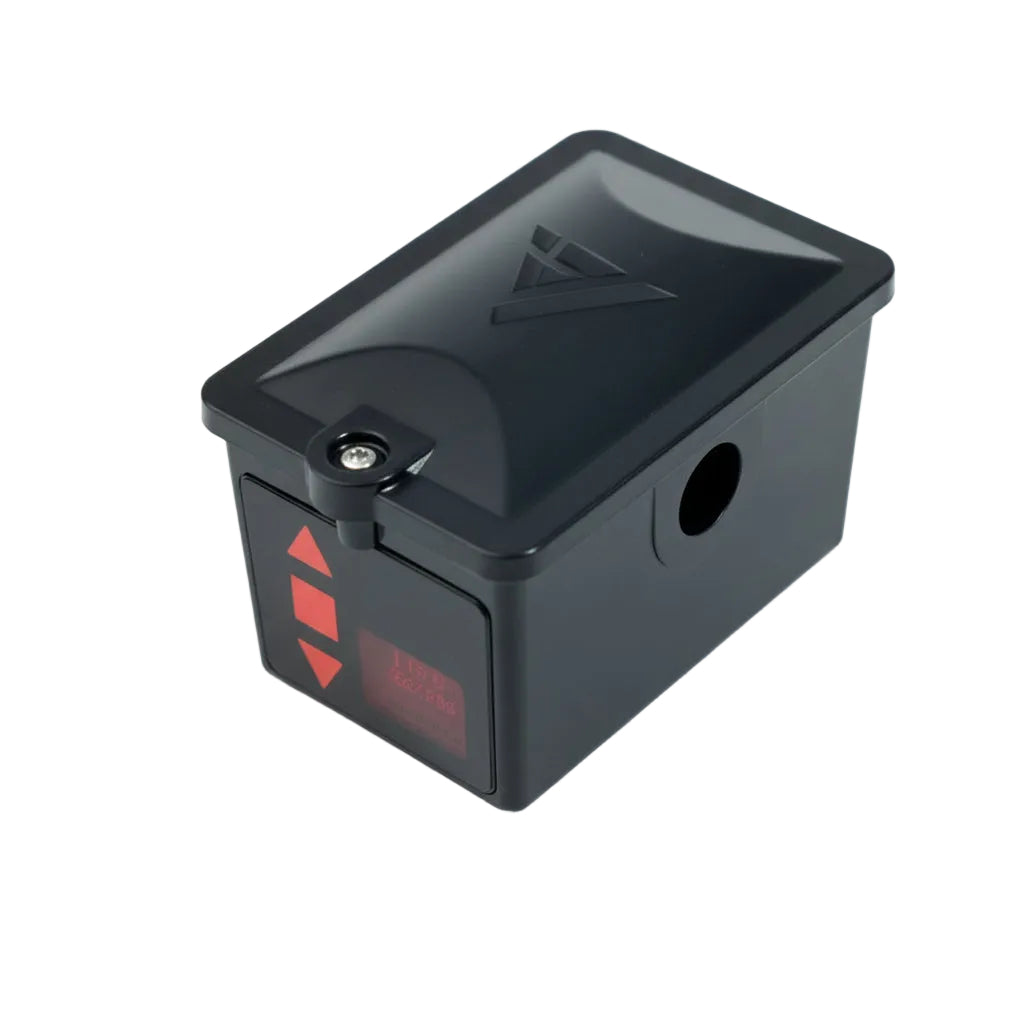

The Water Worker Digital Pressure Control replaces mechanical pressure switches in a variety of well system applications. This unique design operates as a pump gauge, provides precise pressure control and protects the pump. The Water Worker Digital Pressure Control can also provide constant pressure at a fraction of the cost of a Variable Speed Drive (VSD) system.
Features and Benefits:
Provides Constant Pressure Performance
Allows 10 psig differential. Adjustable from 10 to 80 psig with a 10 to 55 psig differential. Easily set Standard Differential or Constant Pressure modes.
Protects Submersible and Jet Pumps
Automatically recognizes 115 or 230VAC systems. Familiar 4-wire configuration; remains idle if wired improperly. Integrated pump protection and troubleshooting codes. Sealed against bug infiltration.
Installs Easily on New or Existing Systems

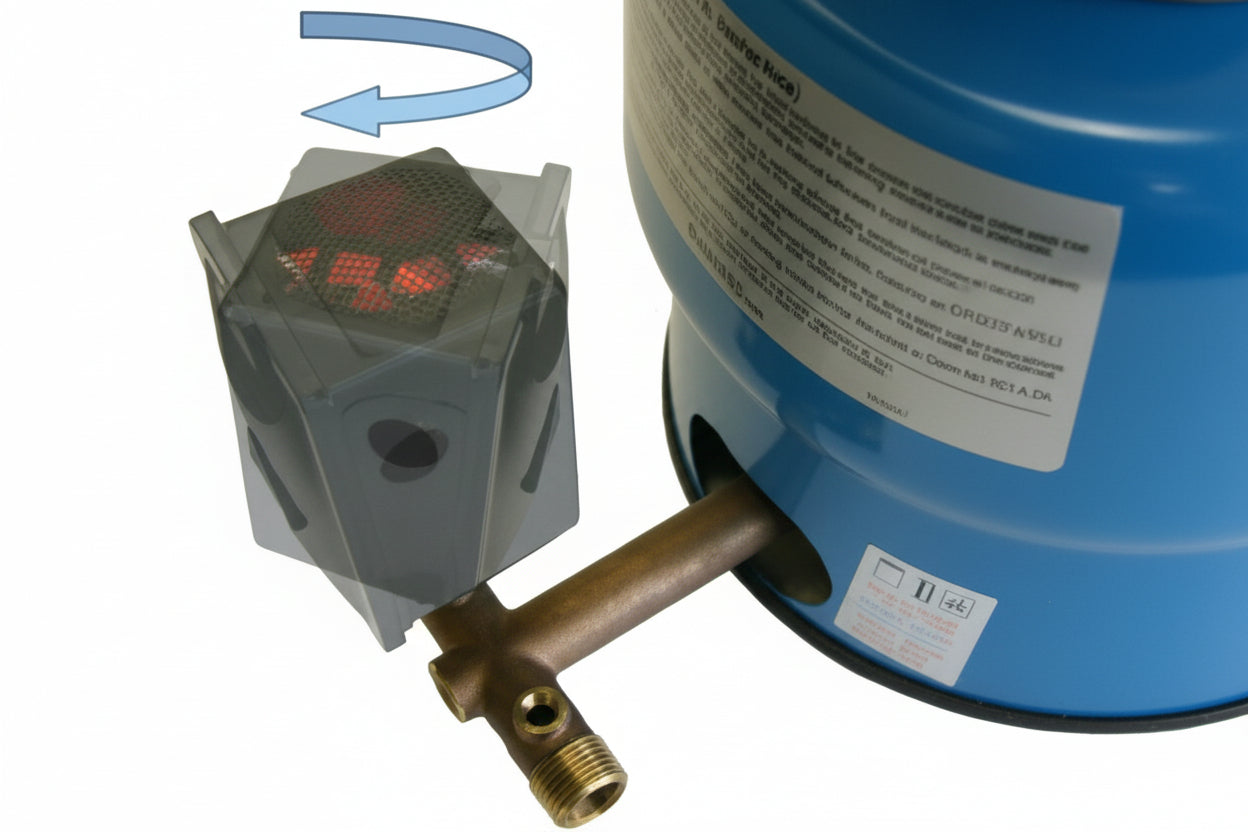

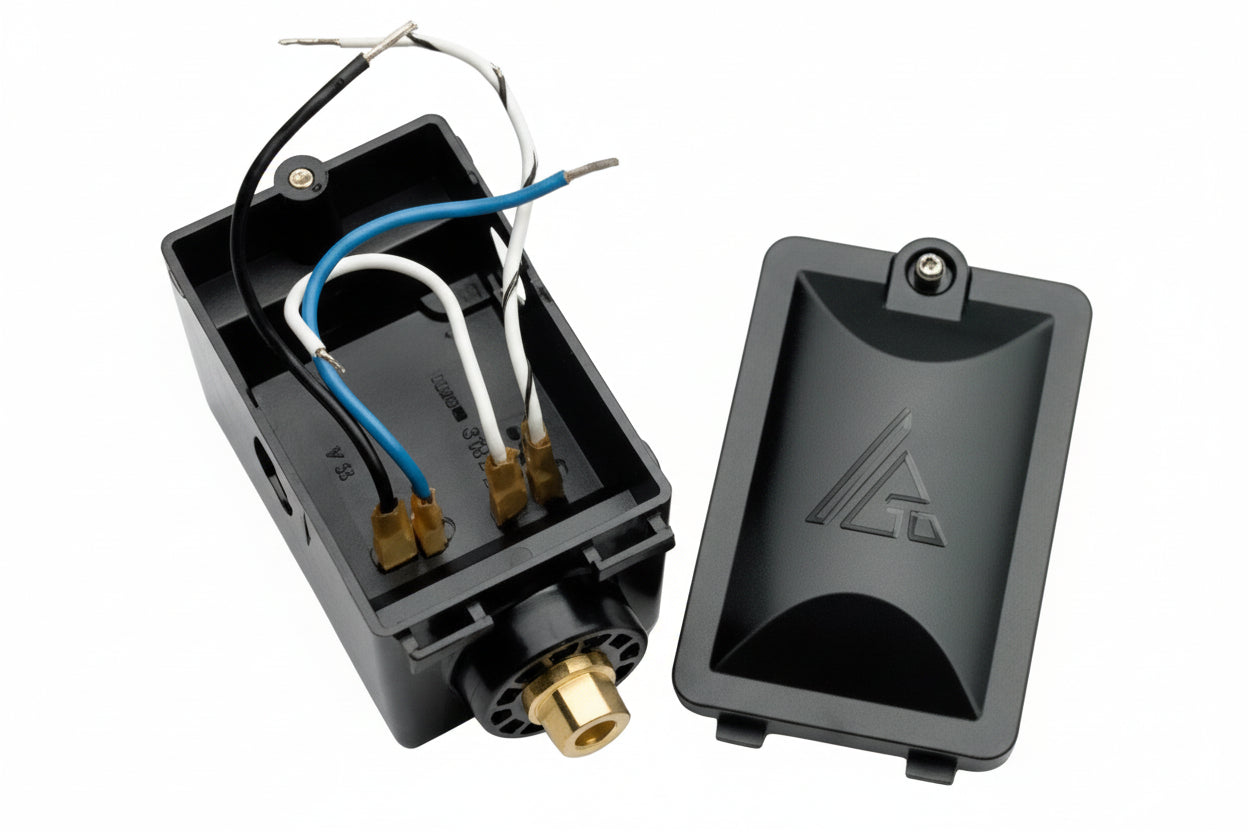

Pre-stripped wire leads for heavy gauge cable. Offset conduit holes provide added wiring space. Digital LED display can rotate 180° for easy viewing.
Built Tough for Reliable Performance
Durable NEMA 3 enclosure for indoor and outdoor applications. UL listed for pumps up to 2 hp; can be used with motor controllers. Protected against line voltage noise and external interference.
2 Year Warranty
Installation & Operation Instructions
