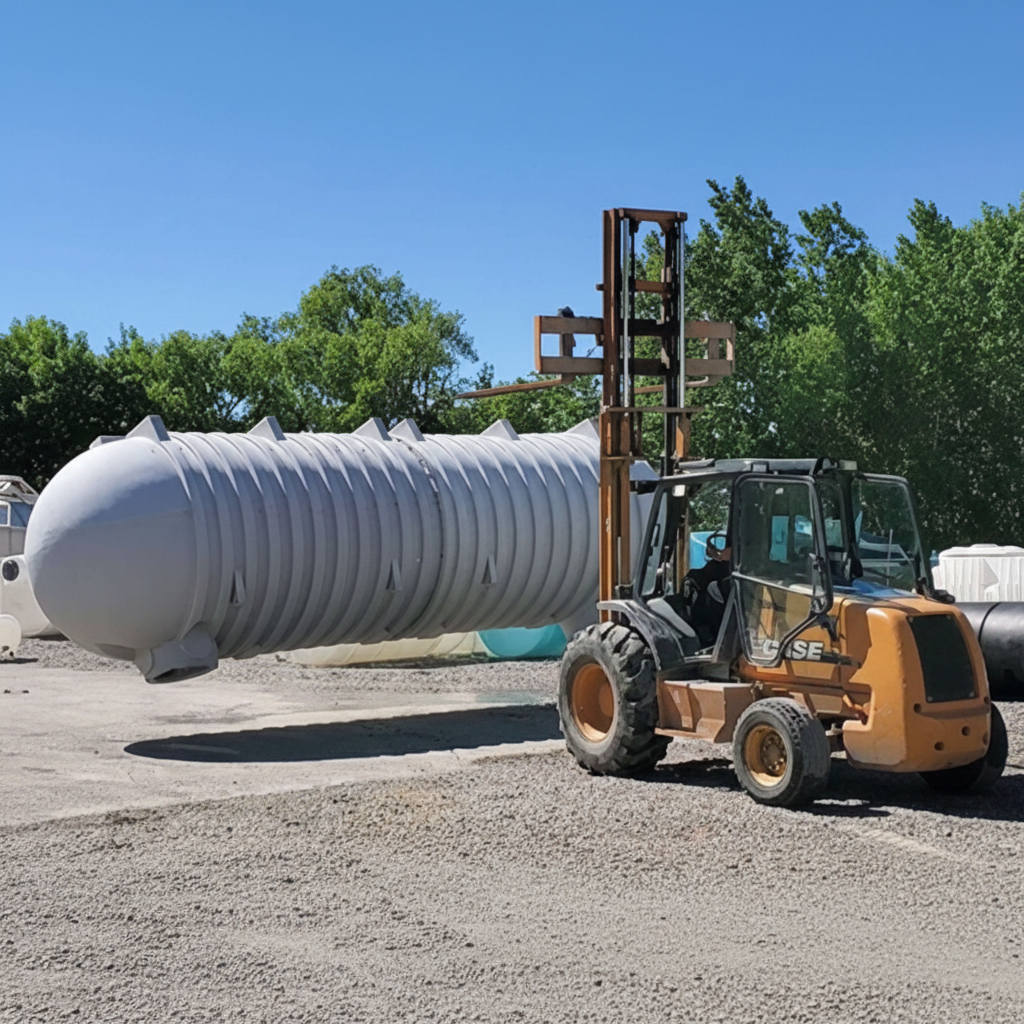

10,000-Gallon Low Profile Underground Cistern
Dimensions: 365"L X 107"W X 101"H.
Certified to Potable Standards. Price does not include delivery. Please email or call us at 937-949-1100 for freight quote.
Ships from Texas and Minnesota
Specifications/Features & Benefits/Backfill and Bedding Requirments
NSF-61 Rated / 8 Fitting Flats - 6 on top (14" Diameter) and 2 on bottom (12.25" Diameter) / Qty 2 - 24" Manholes / Lifting Lugs / Stabilizing Legs
Optional Risers - 6" Tall (Part# 64410) or 24" Tall (Part# 64411) / Optional Safety Lid also available

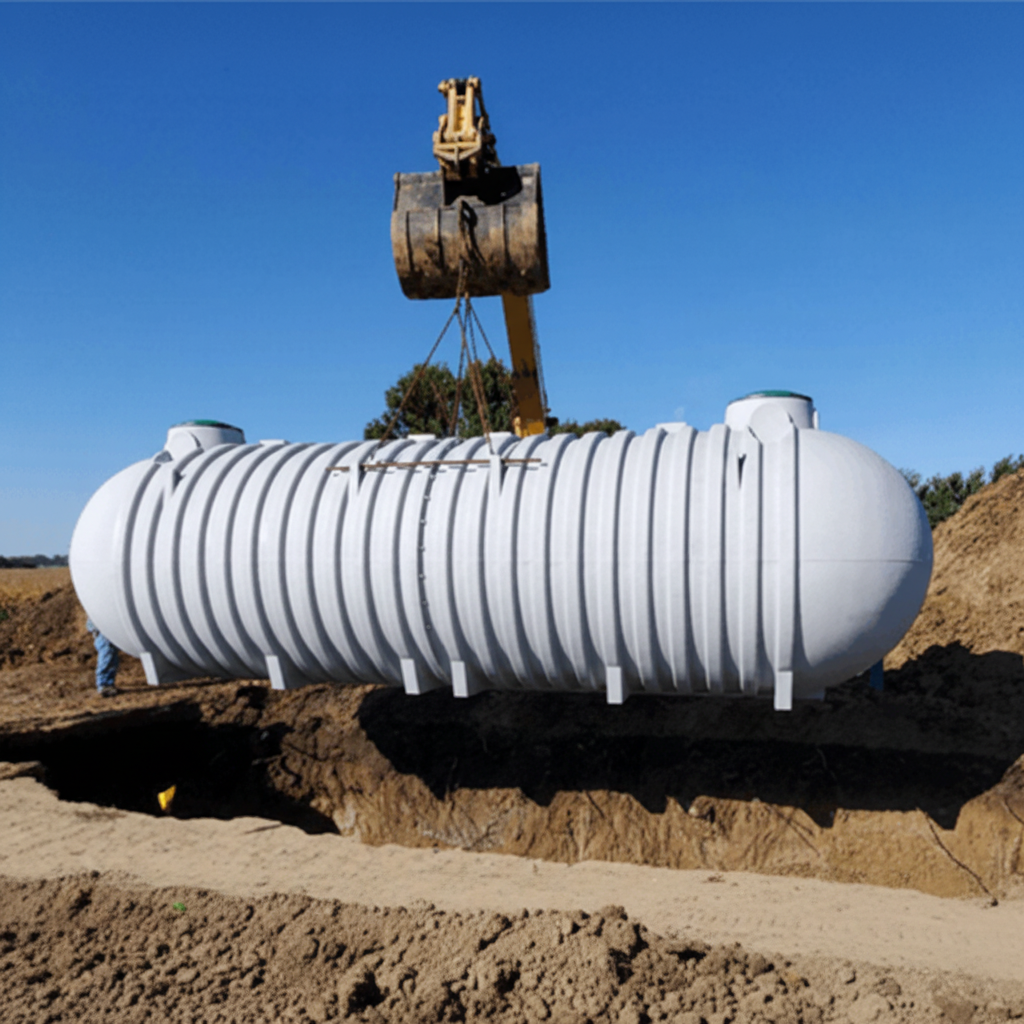

Requirements: 24" Max Burial Depth. 12" of Sand Bedding. 3/4 minus backfill to bottom of top fitting flats. Must fill with water during backfill.
BENEFITS OF HDPE CISTERNS: Durability and longevity. These tanks can last forever and can be easily repaired if they leak. Since it is high-density polyethylene, the plastic itself is very stable. Also, tanks can be installed using smaller equipment, so there is much more flexibility in location of installation.
DISADVANTAGES OF HDPE CISTERNS: Because the tanks themselves are relatively light-weight, precautions must be taken during installation to prevent damage to tanks and tank floating (i.e., tanks popping out of the ground due to groundwater pressure). In areas where the water table isn't as high, this may not be a concern. Also, unlike concrete tanks, poly tanks must be backfilled with imported fill (i.e., sand, crushed stone, etc).
