Is This System Right for You?

This 1,500-gallon underground cistern is designed for non-potable applications — irrigation, toilet flushing, outdoor washing, and fire suppression. It is not rated for drinking water. If you need a potable system, see our 1725-Gallon Cabin Kit (For Drinking Water).

Sizing Guide

• Roof catchment area: Best suited for roofs up to ~2,000–3,000 sq ft depending on your annual rainfall
• Rainfall rule of thumb: 1" of rain on 1,000 sq ft of roof yields ~600 gallons
• Ideal for: Cabins, tiny homes, residential irrigation, off-grid properties, and supplemental water storage
• Not sure if 1,500 gallons is enough? Contact us — we'll help you size the right system for your roof area and usage

What's Included

PLEASE CONTACT US FOR SHIPPING QUOTES — Price does not include shipping, but shipping rates are inexpensive!

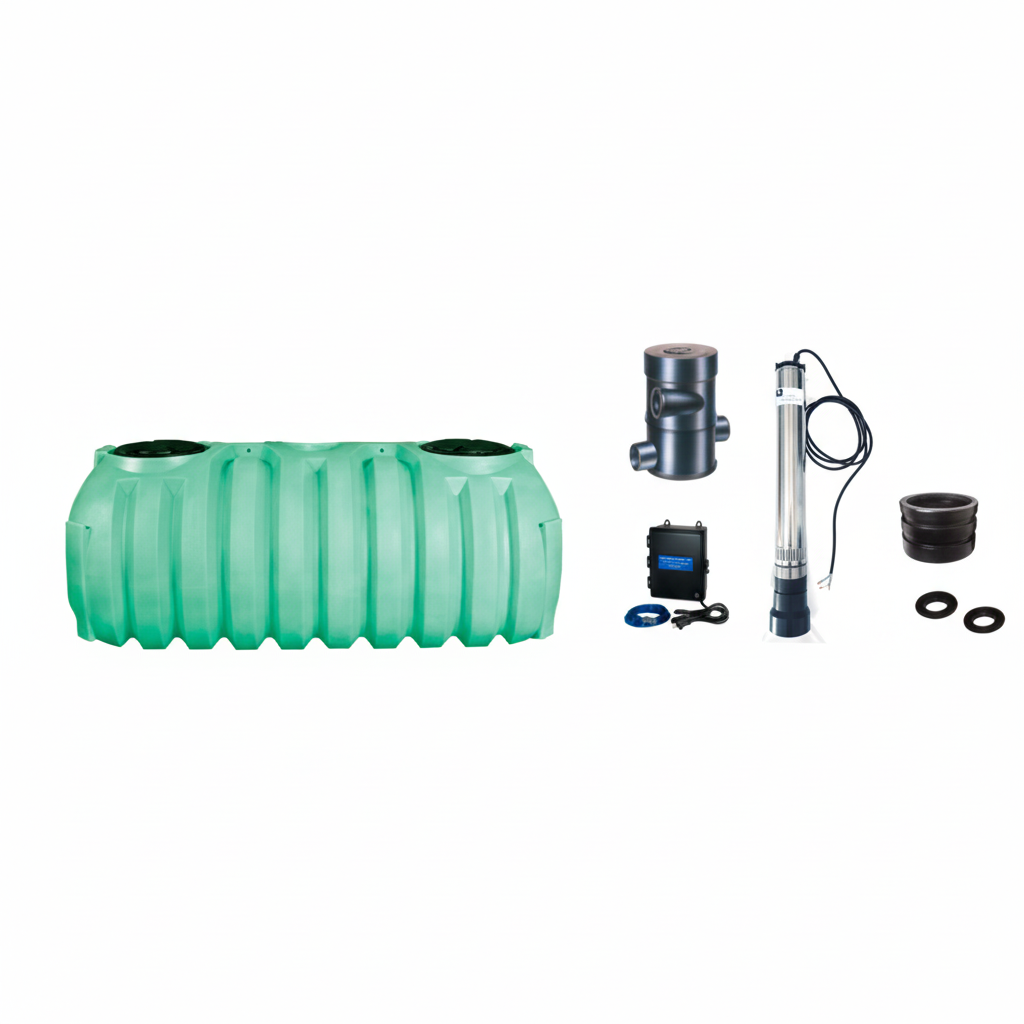

1500 GALLON UNDERGROUND RAIN CISTERN KIT (NON-POTABLE)

Everything you need to install your rainwater harvesting system. Perfect for cabins or tiny homes! Kit includes layout drawings, 30-minute phone consultation to review installation from one of our installation experts, and all of the following components:

(1) 1500-Gallon Norwesco Low Profile Underground Tank (ships from Ohio, Minnesota, Oklahoma, Utah, New York, Arkansas, West Virginia, and Washington)

(1) 24" Manhole Extension Riser (to bring manhole access of cistern to grade level)

(2) 1" Tank Penetration Gasket (for running water line out of tank to house)

(1) 2" Tank Penetration Gasket (for venting tank above-ground)

(1) Wisy WFF100 Vortex Pre-Filtering Roofwasher w/ 20" Grade Extension Riser

(3) 4" No-Hub Pipe Couplings (for joining pipe to Wisy filter)

(1) 2" Tank Vent

(1) Springer Series Traditional Cistern Pump

(1) Automatic Pump Controller

(1) JED 203 Ozone Generator (keeps water fresh and bacteria under control)

Recommended Add-Ons

Mozzie Stoppa Flap Valve 4" — keeps pests out of overflow pipe

4" Tank Penetration Gasket — for inlet and overflow piping

Frequently Asked Questions

• Do I need a permit? Rainwater harvesting regulations vary by state. Most states allow it freely; some (like Colorado) have restrictions. Check your local regulations or contact us and we'll point you in the right direction.
• Can I daisy-chain multiple tanks? Yes — tanks can be linked for larger storage capacity. Contact us for a custom system design.
• How deep does the tank need to be buried? The Norwesco low-profile tank is designed for shallow burial. Depth depends on your frost line and site conditions — our team can advise during your included phone consultation.
• Is professional installation required? Not required, but recommended for excavation and plumbing connections. Many customers DIY with our layout drawings and phone support.

Buy in a Package and Save

Purchase this package and get a bulk discount off all supplies — plus free phone support to aid with installation.

Want more options? Visit our Design Library for free commonly requested rainwater collection system plans.
