Reservoir Tank System for Low-Producing Wells

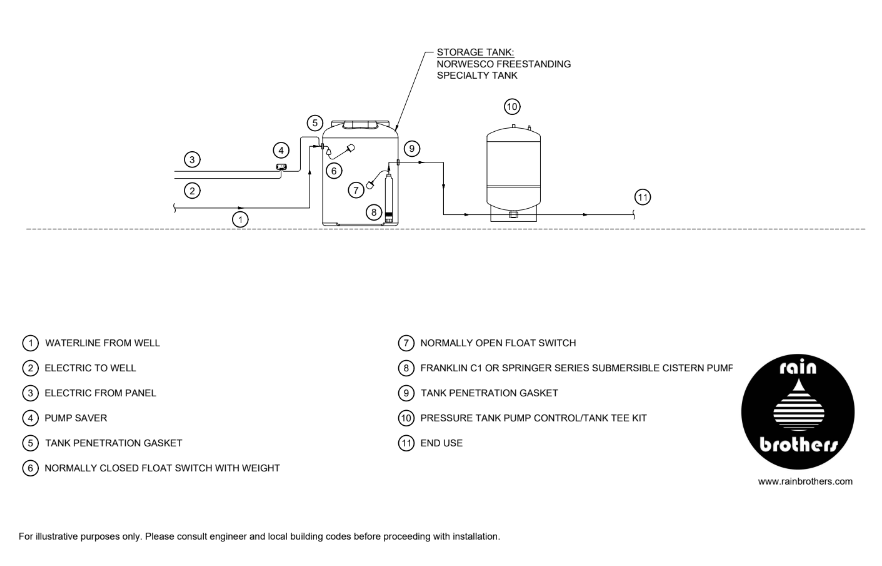

Struggling with a low-producing well? Our Reservoir Tank System is engineered to maximize every drop your well produces — pumping and storing water overnight so you have a reliable supply throughout the day. Ideal for residential properties where well output falls short of daily demand.
The Springer Series Traditional Cistern Pump is a submersible pump designed specifically for cistern and water tank applications. It installs directly inside your reservoir tank and connects to your existing pressure tank or one of our Water Worker Pressure Tanks.
The included LittleFuse PumpSaver wires between your existing well pump and the electrical panel to detect abnormal motor activity — such as a dry well — and automatically shuts off the pump to prevent damage. Select the correct voltage for your existing well pump when ordering. Note: The PumpSaver is compatible with well pumps up to 1.5HP only. For larger pumps, please contact us before purchasing.
What’s Included
- Springer Series Traditional Cistern Pump (115V or 230V)
- Pump Saver & Overload Relay w/NEMA 3R Enclosure Box — protects your existing well pump (up to 1.5HP) from running dry
- Normally Closed Float Switch — automatically shuts off your well pump when the reservoir tank is full
- Submersible Wire Splice Kit
- (3) 1" Pipe Gasket for Tank Penetration
- (1) Cable Weight for Float Switch Tethering
Not Sure What HP or Voltage Your Well Pump Is?
Read our guide on how to identify your well pump’s HP and voltage without pulling it from the well.
Recommended Add-Ons
- 20-Gallon Well-Rite Pressure Tank (NSF Certified)
- Pump Control/Tank Tee Kit
- 500-Gallon Freestanding Potable Water Tank
Wire Sizing Reference Chart
